Portable / wall-mounted AC240V; 32A; 7.4KW household type 2 electric vehicle smart charger.
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection
Details:

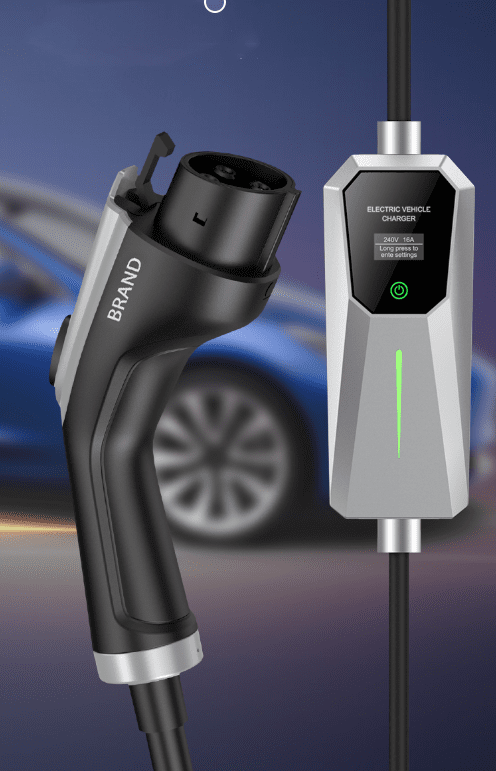

PSF0716B. Portable / wall-mounted 1-phase AC electric vehicle charger. Suitable for US; EU; JP; UK and other international electrical standards AC240V± 15%; 32A; 7kW household type 2 electric vehicle intelligent charging station.
technical parameter:
Output power: AC240V / 50 HZv;
Output power: 32A; 7KW; 32A four-gear adjustable (32A / 24A / 16A / 10A);
Charging reservation time: 2H / 4H / 6H / 8H;
Leakage protection current: 23 mA;
Leakage protection action time: 32ms;
Standby power consumption: 4W;
Cable length: random standard with 5m. Support to purchase 10m; 15m;
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU Plug / UK Plug / CEE Plug;
Support communication: APP; OCPP1.6J; RS-485; LAN; 4G; RFID card;
Working life of connector machinery: 10000 times (no-load plugging);
User interface and control: APP control; button control; card control;
Key surface index: charging time; real-time current / voltage / power supply / connection / charging / fault;

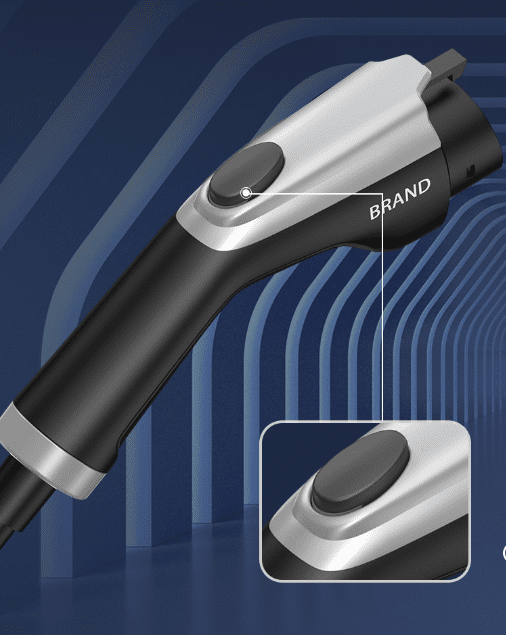

Charge Gun: SAE J1772/IEC 62196-2；
Product certification: 3C; CE; ROHS; REACH; cULus.
Product features:
1. The APP control of the
△ Set the current: when the power grid is overloaded; you can set the current;
△ Control the stop and start: control the stop and start of your phone; you can control it anywhere;
△ Reservation charging: If you want an electric car to charge at night; booking charging through the APP is a good choice; very convenient;
△ Record: You can view the charge record through the APP at any time;
△ This is the best choice for you into the domestic market.
2. Load balance management:
△ Limit the total charging load can protect the local power grid;
△ Sharing the charging load can reduce the required cost of power connection;
△ Choose the open CT (current transformer) as the current sensor; and there is no physical wiring between the equipment; with the advantages of open and closed installation; convenient and fast wiring; and no additional infrastructure or installation cost.
3. Specifications
△ Material: the front panel is tempered glass; with the advantages of scratch prevention and high quality visual effect. The rear cover is made of high quality metal plate; special integral molding; suitable for indoor and outdoor safety.
△ OEM or ODM available: logo; brand; design; size; color; function; fault information; etc.; support for customization;

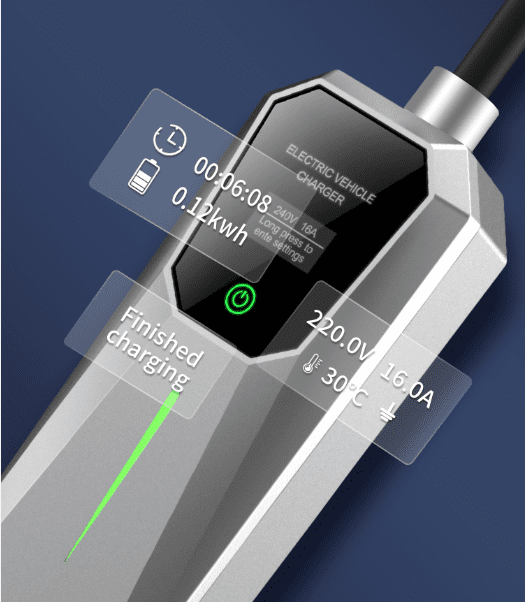

△ 3.5-inch highlight LCD screen: display real-time charging current; voltage; power consumption; time;

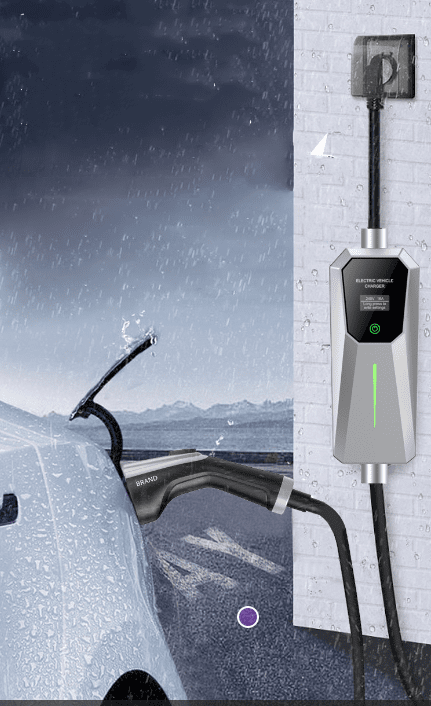

△ Multi-function installation wall installation or base application.
4. Protect
△ High quality; safe and reliable use of production design standards: overvoltage protection; overvoltage protection; overload protection; short circuit protection; leakage protection; grounding protection; over temperature protection; surge protection; etc.
