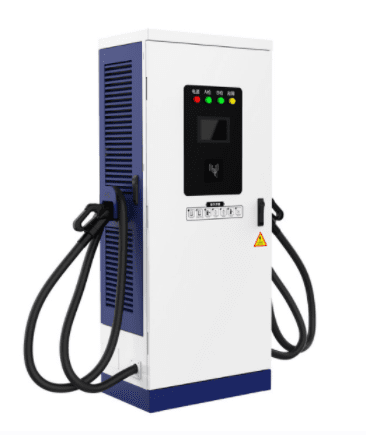

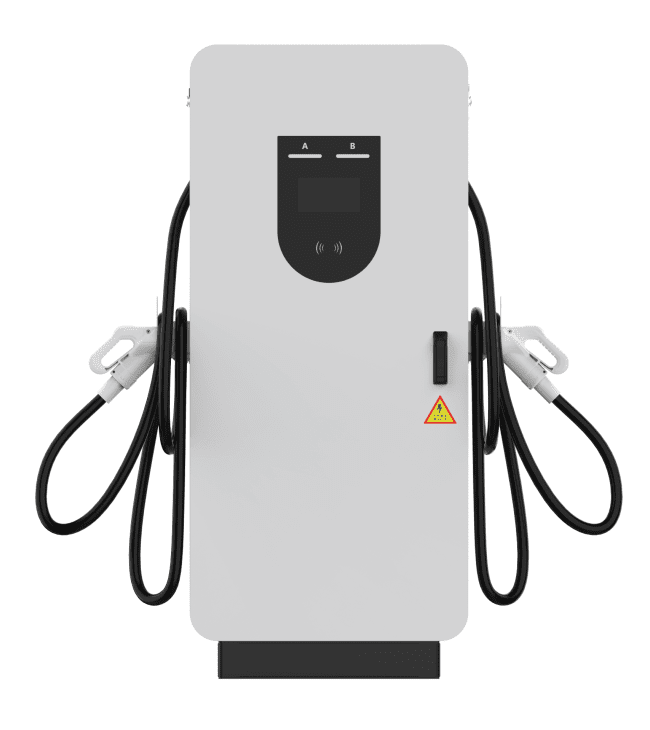

PSL240S. Floor-type DC380V; 250A; 240KW commercial type 2 electric vehicle intelligent charging cabinet.
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection
Details:
PSL240S. Floor-type 3-phase 5-line DC ev charger. Suitable for US; EU; JP; UK and other international electrical standards 380V ± 15%; 240KW commercial electric vehicle intelligent charging station
technical parameter:
Input voltage: DC 380V± 15%;
Rated power: 240KW;
Output voltage range: 150-1000VDC;
Output current range: 0-250A;
Connector type: NEMA 6-20P / 5-15P; NEMA 6-50P / 14-50P;
Support communication: APP; RFID Card; Button;
External Communication: 3G\4G; LAN(RJ-45) and WIFI ；
Connector: 2 sets;
Cable length: random standard with 5m. Support to purchase 10m; 15m;
Operating temperature: -25°C~ + 50°C;
Operating humidity: 5%~98%;
Key surface index: charging time; real-time current / voltage / power supply / connection / charging / fault; 7-inch highlight color LCD screen;
Working life of connector machinery: 10000 times (no-load plugging);
Quality assurance: 12 months;
Waterproof grade: IP54;
Product certification: 3C; CE; ROHS; REACH; cULus.
Commodity features:
△ Smart charger product 3 phase; DC 380V± 15%; 150kw;
△ DC / ac smart charger covers byd; nio; xping; ideal car; aion; ZEEKR; audi; BMW; Chevrolet; Mercedes; porsche; Volkswagen; Volvo; Tesla; Citroen; fish; ford; mitsubishi; nissan; Peugeot; Renault; Smith; tower; Toyota; Honda; prius; chery; walker; most countries such as electric car market family (residential) and commercial purposes;
△ Safety design / multiple protection: underpower protection; overvoltage protection; overload protection; overcurrent protection; overwet protection; leakage protection; grounding protection; lightning protection; electrostatic protection; flame retardant protection;
△ Waterproof grade: IP54;
△ Noise control: 60dB;
△ Human-machine interface: 7-inch LCD color display screen touch screen; LED indicator light;
△ OLED screen: display the charging current; voltage; output energy; charging time; status information; fault information; etc.;
△ Body materials: metal;
△ Quality assurance: 12 months;
△ Device color: the support for customization.
Note: If the single product weight of DC / AC EV charger is more than 10 KG, both parties shall negotiate the quotation of transportation cost
Support one product one generation order business
More commodity specifications and preferential policies; welcome the letter to consult the business
